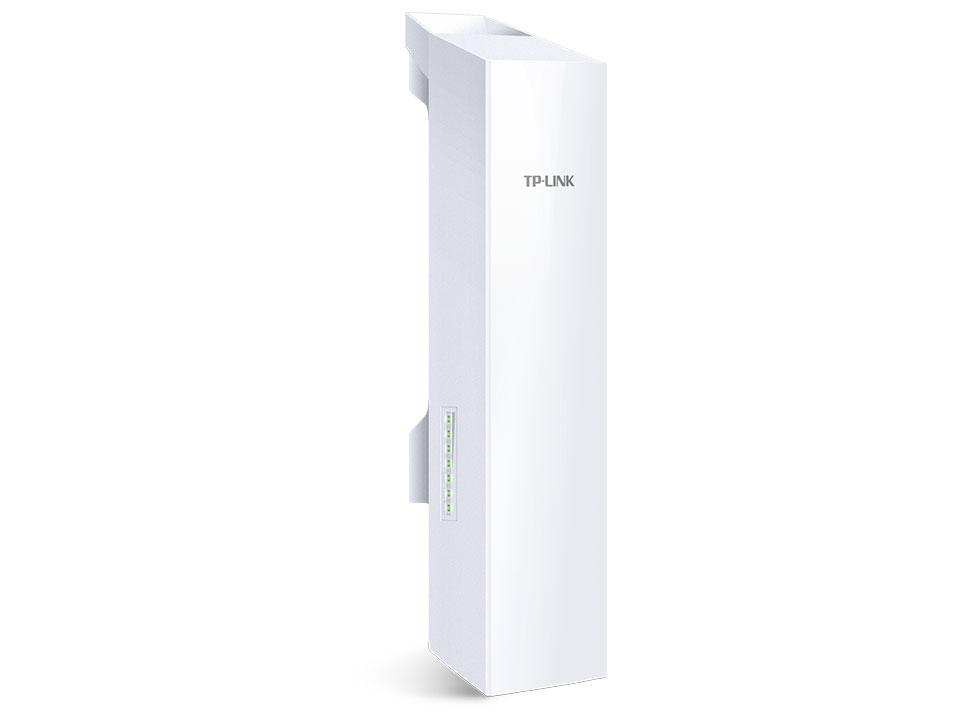

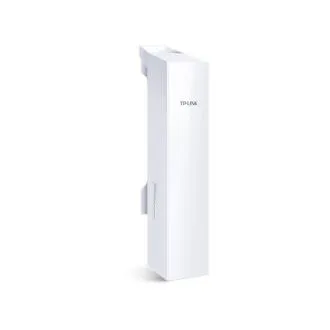

TP-Link CPE220 Outdoor 2,4GHz 300Mbps

Popis a parametre

Vonkajšie CPE zariadenie 2.4GHz 300Mbit/s 12dBi CPE220 - Vstavaná 12dBi 2x2 smerová MIMO anténa s dvojitou polarizáciou - Nastaviteľný výkon vysielania od 0 do 30dBm/1000mWOptimalizácia na úrovni systému pre viac MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zariadenia čo sa týka priepustnosti, kapacity a latencie, ideálny pre aplikácie PTMP - Centralizovaný systém ovládania - riadenie Pharos - Prevádzkové režimy AP/Client/Bridge/Repeater/AP Router/AP Client Router (WISP) vzdialené resetovanie zariadení HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory 64MB DDR2 RAM, 8MB Flash Interface: - 1 10/100Mbps Passive PoE Passthrough) - 1 Grounding Terminal - 1 Reset Button Power Supply: - Passive Power over Ethernet via LAN0 (+4,5 pins; -7,8 pins) - Voltage range: 16-27 VDC Dimensions (WXDXH) 11×3.1×60 mm 10.8 Watts Max, Poznámka: Ak deployed using Passive PoE, elektrický drawn z elektrickej siete môže byť vysoký, by mohol byť istý, čo vedie k káblu. Antenna Type: - Built-in 12dBi 2x2 Dual-polarized Directional Antenna - Beam Width: 60° (H-Plane) / 30° (E-Plane), Poznámka: Pre viac detailov, prečítajte si údaje o ochrannej ochrane: - 15KV ESD: Outdoor ASA stabilizovaný plastový materiál - IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n (s Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (s Pharos MAXtream enabled) Wires (40MHz,Dynamic) - Up to 144.4Mbps (20MHz,Dynamic) - Up to 72.2Mbps (10MHz,Dynamic) - Up to 36.1Mbps (5MHz,Dynamic) Frekvencia 2.4~2.483GHz. device is used. Transmission Power 30dBm/1000mw (Adjustable power by 1dBm), Poznámka: Maximum transmission power má vary prostredníctvom rôznych kanálov, ktoré sú závislé na limitoch krajín alebo regiónov v ktorých sa device používa. SOFTWARE FEATURES Wireless Configurations: - Pharos MAXtream TDMA Technology - 802.11b/g/n Modes - Selectable Channel Width: 5/10/20/40MHz - Automatic Channel Selection - Transmision Power Control WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption - SSID Broadcast Enable/Disable - Multi-SSID s VLAN Tagging (AP mode only) - Distance/ACK Timeout Setting - Wireless MAC Address Filter Threshold/Fragmentation > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management: - Discovery and Remote Management via Pharos Control application - HTTP/HTTPS Web-based management - System Log - SNMP Agent (v2c) - Ping Watch Dog - Dynamic DD Indikátory: - Signal Strength/Noise/Transmit CCQ/CPU/Memory - Monitory: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP - Spectrum Analyzer - Speed Test - Ping - Traceroute System-level Optimations POE ADAPTER FEATURES Interfaces: - 1 AC Jack with Earth Ground - 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data) - 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data) Efficiency >8 CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Power Status LED: - 0~0.8A: Green - 0.8A~1.0A: Red Output 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support 60m Power over Ethernet) Input Voltage 100VA ~ 240VAC @ 50Hz ~ 60Hz Dimensions (W x D x H) 110×57×33.5mm Input Current 0.8A Max @ 100VAC Input 100-240VAC, 50 24VDC (+4,5pin; -7,8pin) OTHERS Certification CE, FCC, RoHS, IPX5 Package Contents: - Outdoor Wireless CPE - 24V 1A Passive PoE Adapter - Pole Mounting Straps - AC Power Cord - Installation Guide System Require0 or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Poznámka: Máme možnosť použiť jeden z nasledujúcich webových prehliadačov pre bezproblémové používateľské skúsenosti: Google Chrome, Safari, a Firefox. IE browsers are not recommended. Environment: - Operating Temperature: -30 C - 70 C - Storage Temperature: -40 C - 70 C - Operating Humidity: 10% ~ 90% non-condensing - Storage Humidity: 5% ~ 95% non-condensing
